HT-150®  & LT-100® Panels

SS 24/26 Picture NeededLow profile system for commerical, industrial and residenial applications.

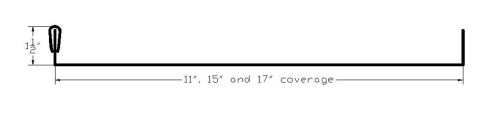

HT-150 Profile

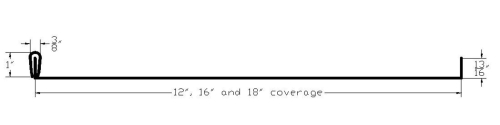

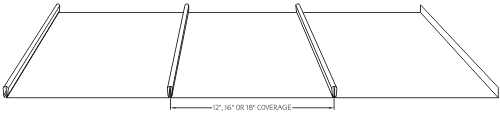

LT-100 Profile





Product Features

  • LT-100® panels have a 1" high batten. It is available in 24 gauge steel and .032 aluminum with 12, 16 or 18 inch coverage.
  • HT-150® panels have a 1 1/2" high batten. It is available in 24 gauge steel and .032 aluminum with 11, 15 or 17 inch coverage.
  • Precision leveled in line with state-of-the art Herr/Voss equipment to significantly reduce the effects of oil canning in flat pan panels.
  • All panels can be produced with or without striations. Striations help to reduce the effects of oil canning.
  • Custom cut to the inch in lengths from four (4) to forty (40) feet.
    • For panels over forty (40) feet in length, please call.Service.
  • Warranties up to 40 years.
  • A full line of standard or custom trim items are available in matching or contrasting colors.



Colors

LT-100® and HT-150® panels are available in 24 gauge steel with the following COLOR LOC® Kynar 500®/Hylar 5000® paint colors.


Classic Copper
Premium Color
Cool Color

Coastal White
Cool Color

Ruby Red
Cool Color


Colonial Red
Cool Color

Dark Bronze
Cool Color

Medium Bronze
Cool Color

Sand Stone
Cool Color

Sahara Tan
Cool Color

Beaufort Blue

Biscayne Blue

Stone Gray
Cool Color

Hilton Head Green
Cool Color

Patina
Cool Color

Silver Metallic
Cool Color

Onyx Black
Cool Color

Acrylic Coated Galvalume

Charcoal
Cool Color


LT-100® and HT-150® panels are available in .032 aluminum with the following ALUMAKLAD® Kynar 500®/Hylar 5000® paint colors.


Snowdrift White
Cool Color

Dark Bronze
Cool Color

Roman Bronze
Cool Color

Slate Gray
Cool Color

Silver
Cool Color

Classic Green
Cool Color

Copper Penny
Cool Color

Matte Black
Cool Color

Colors are represented as closely as possible.
   If color match is critical, please request a physical sample
.

Installation

Installation Manual for Architectural Panels

  • LT-100® and HT-150® panels are water shedding panels and must be installed over solid decking with a minimum of 30 pound felt applied.
  • Recommended minimum slope is 2 1/2" in 12 inches.
  • Consult your Architect or Engineer for local building codes and/or restrictions.
  • Oil canning is not considered a cause for rejecting the panels.

Radius Panels

  • LT-100® can be produced in both; concave or convex directions. A water proof membrane must be used to achieve water tightness.



Touch Up Paint

  • To read about our recommended use of touch up paint, click below.

Touch Up Paint



Owner Care & Maintenance

  • Recommended guidelines to ensure your new metal roof provides years of trouble free service and maintains its appearance.

Owner Care & Maintenance
