DRI LOC® Exposed Fastener Panels

Dreamweaver CS3Beautiful, durable through-the-sheet fastened panel with a profile that produces exciting shadow lines on your building.

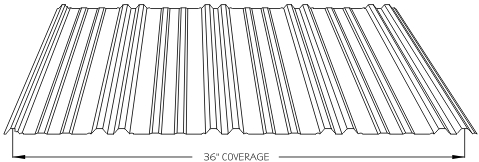

DRI LOC Profile






Product Features

  • DRI LOC panels have two (2) 7/16” high rib on nine (9) inch centers with intermediate stiffening ribs.
  • For use in commercial/industrial, residential and agricultural applications as roofing, mansards, fascia, siding and equipment screens.
  • Custom cut to the inch in lengths from three (3) to forty (40) feet.
    • For panels over forty (40) feet in length, please call.
  • Warranties up to 40 years.
  • Available in 29 gauge ASTM 792-* 1994 GRADE 80 G-90 galvanized.
  • A full line of standard or custom trim items are available in matching or contrasting colors.

    Classic Trim For Exposed Fastener Panels

    Standard Trim For Exposed Fastener Panels

Colors

29 gauge DRI LOC® is painted with Siliconized-Polyester paint system.


Seafoam White
Cool Color

Sunrise Red
Cool Color

Scarlett Red
Cool Color

Teak Brown
Cool Color

Sand Dune
Cool Color

Gulfstream Blue
Cool Color

Marsh Gray
Cool Color

Deep Green
Cool Color

Sun Tan
Cool Color

Black Beard
Cool Color

Charcoal
Cool Color

Acrylic Coated Galvalume


Copper Penny
Premium Color
29ga. ONLY
Cool Color

G-90 Galvanized
29ga. ONLY

Burgundy
Cool Color

Burnished Slate
Cool Color

* Colors are represented as closely as possible.
   If color match is critical, please request a physical sample.

Installation

Installation Manual for CMS Exposed Fastener Panel Systems

  • DRI LOC® panels can be installed over open purlins spaced up to 24 inches on center or on solid decking.
  • When solid decking is used, a water shedding membrane must be installed. This membrane should be a minimum of 30 pound felt.
  • If end laps are required, add 6 inches to panel length.
  • Recommended minimum slope is 2 1/2" in 12 inches.
  • Consult your Architect or Engineer for local building codes and/or restrictions.
  • DRI LOC® panels can be nailed or screwed to your structure. If nails are used they should be placed on the top of the rib. If screws are used they shoud be installed adjacent to the rib in the flat pans of the panel.



Touch Up Paint

  • To read about our recommended use of touch up paint, click below.

Touch Up Paint



Owner Care & Maintenance

  • Recommended guidelines to ensure your new metal roof provides years of trouble free service and maintains its appearance.

Owner Care & Maintenance
