5V Exposed Fastener Panels

Dreamweaver CS3This is a timeless classic, showing no sign of diminishing popularity or demand. Basic through-the-sheet fastened panel in G-90 galvanized steel, acrylume, and painted.

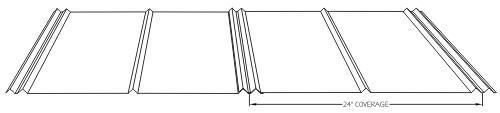

5V Profile




Product Features

  • 5V has 7/16" high ribs on 12 inch centers.
  • For use in commercial/industrial, residential and agricultural applications as roofing, mansards, fascia, siding and equipment screens.
  • Custom cut to the inch in lengths from three (3) to twenty-one (21) feet.
    • For panels over twenty-one (21) feet in length, please call.
  • Warranties up to 40 years.
  • Available in 29 gauge ASTM A653 GRADE 80 G-90 galvanized, 26 gauge ASTM A653 Grade 50 acrylume, 24 gauge ASTN A792-99 GRADE 50 AZ 55 acrylume, 29 gauge ASTM A653 Grade 80 painted, 26 gauge ASTM A653 GRADE 50 painted and 24 gauge ASTM A792-99 GRADE 50 painted.
  • A full line of standard or custom trim items are available in matching or contrasting colors.

    Classic Trim For Exposed Fastener Panels

    Standard Trim For Exposed Fastener Panels

Colors

5V in 29 ga and 26 ga is painted with Siliconized-Polyester paint system.


Seafoam White
Cool Color

Sunrise Red
Cool Color

Scarlett Red
Cool Color

Teak Brown
Cool Color

Sand Dune
Cool Color

Gulfstream Blue Premium Color
Cool Color

Marsh Gray
Cool Color

Deep Green
Cool Color

Sun Tan
Cool Color

Black Beard
Cool Color

Charcoal
Cool Color

Acrylic Coated Galvalume


Copper Penny
Premium Color
Cool Color

G-90 Galvanized
29ga. ONLY

Burgundy
Cool Color

Burnished Slate
Cool Color

5V in 24 gauge is painted with a Kynar 500® and Hylar 5000® paint system.


Classic Copper
Premium Color
Cool Color

Coastal White
Cool Color

Ruby Red
Premium Color
Cool Color


Colonial Red
Cool Color

Dark Bronze
Cool Color

Medium Bronze
Cool Color

Sand Stone
Cool Color

Sahara Tan
Cool Color

Beaufort Blue

Biscayne Blue
Premium Color

Stone Gray
Cool Color

Hilton Head Green
Cool Color

Patina
Cool Color

Silver Metallic
Premium Color
Cool Color

Onyx Black
Cool Color

Acrylic Coated Galvalume

Charcoal
Cool Color


Colors are represented as closely as possible.
   If color match is critical, please request a physical sample
.

Installation

Installation Manual for CMS Exposed Fastener Panel Systems

  • 5V panels can be installed over open purlins spaced up to 24 inches on center or on solid decking.
  • When solid decking is used, a water shedding membrane must be installed. This membrane should be a minimum of 30 pound felt.
  • If end laps are required, add 6 inches to panel length.
  • Recommended minimum slope is 2 1/2" in 12 inches.
  • Consult your Architect or Engineer for local building codes and/or restrictions.
  • 5V panels are screwed to your structure and should be installed adjacent to the rib in the flat pans of the panel.



Touch Up Paint

  • To read about our recommended use of touch up paint, click below.

Touch Up Paint



Owner Care & Maintenance

  • Recommended guidelines to ensure your new metal roof provides years of trouble free service and maintains its appearance.

Owner Care & Maintenance
