VS12 & VS111 Panels

SS 24/26 Picture NeededSolid or vented soffit panels in two profiles; flush VS12 or VS111 1" reveal panel. These panels are also a great alternative vertical wall panel.

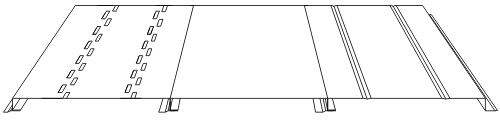

VS12 Profile

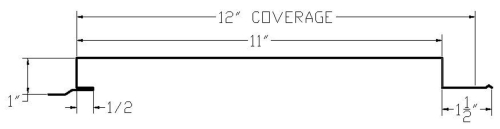

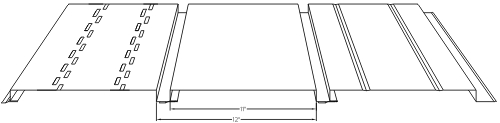

VS111 Profile






Product Features

  • VS 12 and VS111 panels have a 12" coverage and are used for vertical wall or soffit panels and are not to be used as roof panels. They are produced in two profiles; flush panel and 1" revealed panel, with or without perforations.
  • Each lineal foot of perforation offers 3 1/2" net free air flow.
  • Custom cut to the inch in lengths from three (3) to forty (40) feet for solid panels and custom cut to the inch in lengths from four (4) to forty (40) feet for perforated panels.
  • Warranties up to 40 years.
  • All panels can be produced with or without striations. Striations help to reduce the effects of oil canning.
  • A full line of standard or custom trim items are available in matching or contrasting colors.


COLOR LOC® Kynar 500® /Hylar 5000® paint colors

The VS12 and VS111 panels are available in all of our unique COLOR LOC® Kynar 500® /Hylar 5000® painted 24 gauge steel and selected .032 aluminum colors.


Classic Copper
Premium Color
Cool Color

Coastal White
Cool Color

Ruby Red
Premium Color
Cool Color


Colonial Red
Cool Color

Dark Bronze
Cool Color

Medium Bronze
Cool Color

Sand Stone
Cool Color

Sahara Tan
Cool Color

Beaufort Blue

Biscayne Blue
Premium Color

Stone Gray
Cool Color

Hilton Head Green
Cool Color

Patina
Cool Color

Silver Metallic
Premium Color
Cool Color

Onyx Black
Cool Color

Acrylic Coated Galvalume

Charcoal
Cool Color

Pre-Weathered-Galvalume




The VS12 and VS111 panels are also offered in a 26 gauge siliconized polyester paint system.


Seafoam White
Cool Color

Sunrise Red
Cool Color

Scarlett Red
Premium Color
Cool Color

Teak Brown
Cool Color

Sand Dune
Cool Color


Gulfstream Blue
Premium Color
Cool Color


Marsh Gray
Cool Color

Deep Green
Cool Color

Sun Tan
Cool Color

Black Beard
Cool Color

Charcoal
Cool Color

Acrylic Coated Galvalume

Burgundy
Cool Color

Burnished Slate
Cool Color

Copper Penny
Premium Color

Installation

Installation Manual for Architectural Panels

  • Soffit panels can be installed over open purlins spaced up to 48 inches on center.
  • Consult your Architect or Engineer for local building codes and/or restrictions.
  • Your order can be ready for shipment in a week to ten (10) days.
  • Oil canning is not considered a cause for rejecting the panels.



Touch Up Paint

  • To read about our recommended use of touch up paint, click below.

Touch Up Paint



Owner Care & Maintenance

  • Recommended guidelines to ensure your new metal roof provides years of trouble free service and maintains its appearance.

Owner Care & Maintenance
