SS 24/26 ® Panels
A low profile snap loc panel ideal for residential or commercial applications.

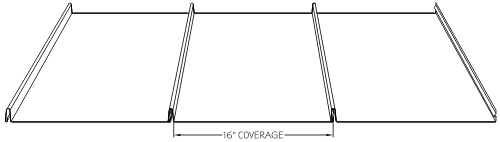

SS 24/26 Profile
Product Features
- SS24 and SS26 are 1" high standing seam snap loc panel.
- Custom cut to the inch in lengths from four (4) to forty (40) feet.
- For panels over forty (40) feet in length, please call.
- Available in 24 gauge and 26 gauge steel with 16 inch coverage.
- All panels can be produced with or without striations. Striations help to reduce the effects of oil canning.
- A full line of standard or custom trim items are available in matching or contrasting colors.
Colors
The SS panel is available in all of our unique COLOR LOC® Kynar 500®/Hylar 5000® painted 24 gauge steel.
 Classic Copper Premium Color Cool Color |
 Coastal White Cool Color |
 Ruby Red Premium Color Cool Color |
 Colonial Red Cool Color |
 Dark Bronze Cool Color |
 Medium Bronze Cool Color |
 Sand Stone Cool Color |
 Sahara Tan Cool Color |
 Beaufort Blue Premium Color |
 Biscayne Blue Premium Color |
 Stone Gray Cool Color |
 Hilton Head Green Cool Color |
 Patina Cool Color |
 Silver Metallic Premium Color Cool Color |
 Onyx Black Cool Color |
 Acrylic Coated Galvalume |
 Charcoal Premium Color Cool Color |
SS panel is also offered in a 26 gauge siliconized polyester paint system.
Seafoam White Cool Color |
 Sunrise Red Cool Color |
 Scarlett Red Premium Color Cool Color |
 Teak Brown Cool Color |
 Sand Dune Cool Color |
 Gulfstream Blue Premium Color Cool Color |
 Marsh Gray Cool Color |
 Deep Green Cool Color |
 Sun Tan Cool Color |
Black Beard Cool Color |
Charcoal Cool Color |
Acrylic Coated Galvalume |
Copper Penny Premium Color 29ga. ONLY Cool Color |
 G-90 Galvanized 29ga. ONLY |
 Burgundy 29ga. ONLY Cool Color |
Colors are represented as closely as possible.
If color match is critical, please request a physical sample.
Installation
SS26 installation manual
- SS24 and SS26 panels must be installed on solid decking only.
- When solid decking is used, a water shedding membrane must be used. This membrane should be a minimum of 30 pound felt.
- Recommended minimum slope is 2 1/2" in 12 inches.
- Consult your Architect or Engineer for local building codes and/or restrictions.
- Oil canning is not considered a cause for rejecting the panels.
Touch Up Paint
- To read about our recommended use of touch up paint, click below.
Owner Care & Maintenance
- Recommended guidelines to ensure your new metal roof provides years of trouble free service and maintains its appearance.
