Our Products > Classic Batten Panels

Classic Batten® Panels

Dreamweaver CS3Reminiscent of original board and batten standing seam system first used in the middle ages.

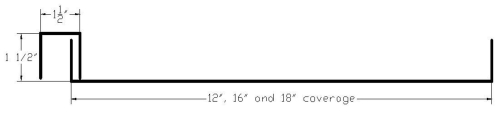

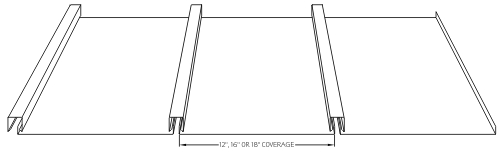

Classic Batten Profile






Product Features

  • CLASSIC BATTEN® features a 1 1/2" high by 1 1/2" wide batten.
  • Available in 24-gauge steel and .032 aluminum with 12, 16 and 18 inch coverage.
  • Custom cut to the inch in lengths from four (4) to forty (40) feet.
    • For panels over forty (40) feet in length, please call.
  • Warranties up to 40 years.
  • All panels can be produced with or without striations. Striations help to reduce the effects of oil canning.
  • A full line of standard or custom trim items are available in matching or contrasting colors.



Colors

CLASSIC BATTEN® panels are available in all of our unique COLOR LOC® Kynar 500®/Hylar 5000® painted 24gauge steel and selected aluminum paint colors.


Classic Copper
Premium Color
Cool Color

Coastal White
Cool Color

Ruby Red
Cool Color


Colonial Red
Cool Color

Dark Bronze
Cool Color

Medium Bronze
Cool Color

Sand Stone
Cool Color

Sahara Tan
Cool Color

Beaufort Blue

Biscayne Blue

Stone Gray
Cool Color

Hilton Head Green
Cool Color

Patina
Cool Color

Silver Metallic
Cool Color

Onyx Black
Cool Color

Acrylic Coated Galvalume

Charcoal
Cool Color


Colors are represented as closely as possible.
   If color match is critical, please request a physical sample
.

Installation

Installation Manual for Architectural Panels

  • CLASSIC BATTEN® is a water shedding panel and must be installed over solid decking with a minimum of 30 pound felt applied.
  • Recommended minimum slope is 2 1/2" in 12 inches.
  • Consult your Architect or Engineer for local building codes and/or restrictions.
  • Oil canning is not considered a cause for rejecting the panels.



Touch Up Paint

  • To read about our recommended use of touch up paint, click below.

Touch Up Paint



Owner Care & Maintenance

  • Recommended guidelines to ensure your new metal roof provides years of trouble free service and maintains its appearance.

Owner Care & Maintenance
